Step 1

Open Flexi Production Manager Software

Step 2

Click on the Setup Tab

Step 3

Select Color Profiling Wizard

Step 4

Select Create ICC Output Profile

Step 5

Start Profile Setup proceed to Step 6

Step 6

Check Settings

  1. Device: “Printer”

  2. Print Mode: High Quality

  3. Resolution: 1440x720

  4. Color Mode: CMYK (2 bit)

  5. Dither: Enhanced Stochastic 2

  6. Media Display Name: This is on the rack under the media

  7. Select (NEXT>)

Step 7

Linearization - Select Print Target

Step 8

Make sure the Ione Profiler is pluged in and on the white point. Then select calibrate and calibrate devise by pressing the button on the side over the white target.

Step 9

When devise is calibrated click on measure and start reading the patches from left to right on the target that just printed.

Step 10

Press (Next>)

Step 11

Print Multi-ink Limit Test

Step 12

Look at print with loop and look for the range that the print looks good with no over spray and is not sticky to touch then input the numbers into the Ink Limit

Step 13

Select (Next>)

Step 14

Characterization - Print Target

Step 15

Press Calibrate Put the Ione over the white target and press the button on the left over the white target

Step 16

Take target out of printer and press measure. Measure each line from left to right

Step 17

Select (Next>)

Step 18

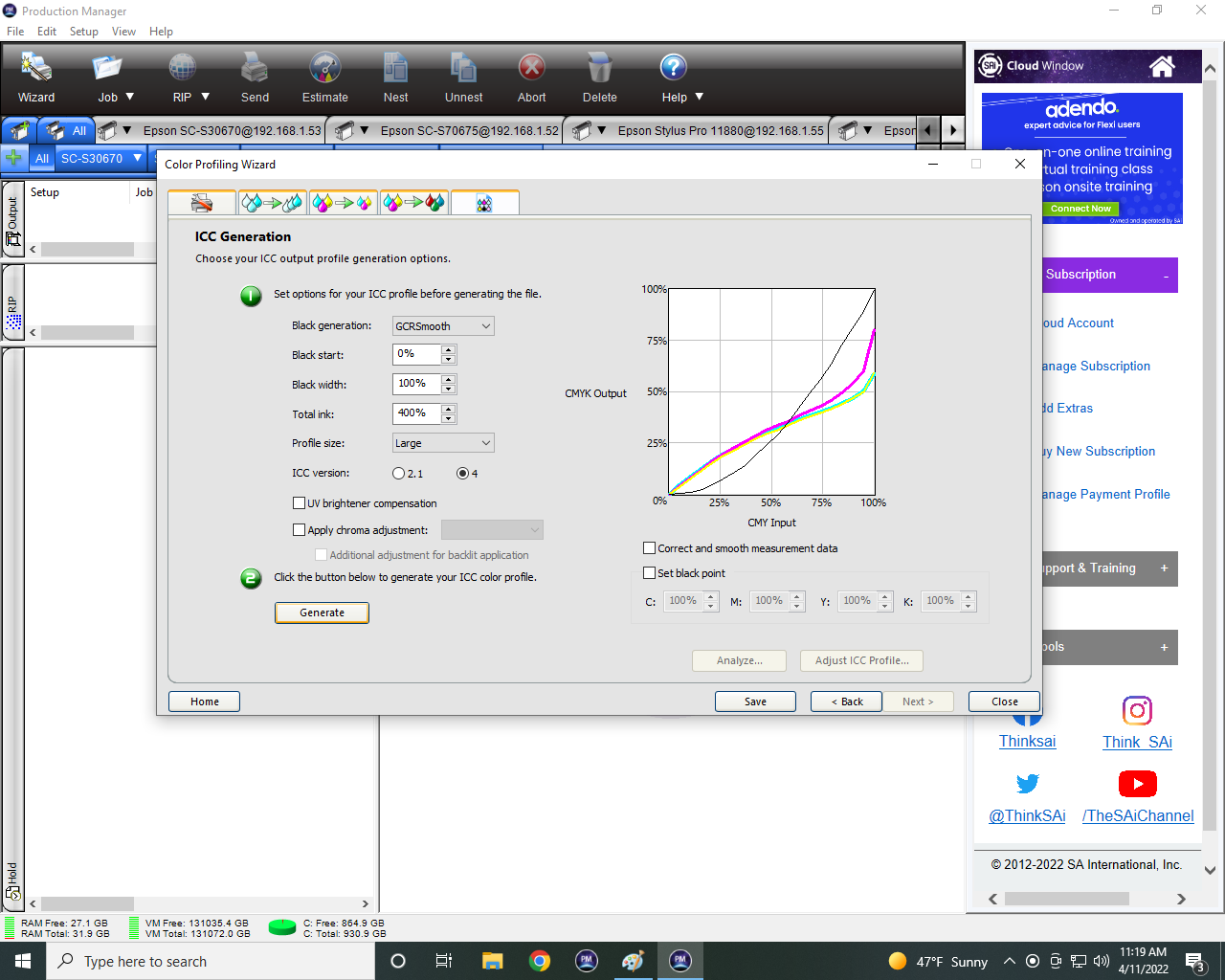

ICC Generation Select Generate

Step 19

Press Finish
