Step 1

Open Flexi Software

Step 2

Open File From Work Files

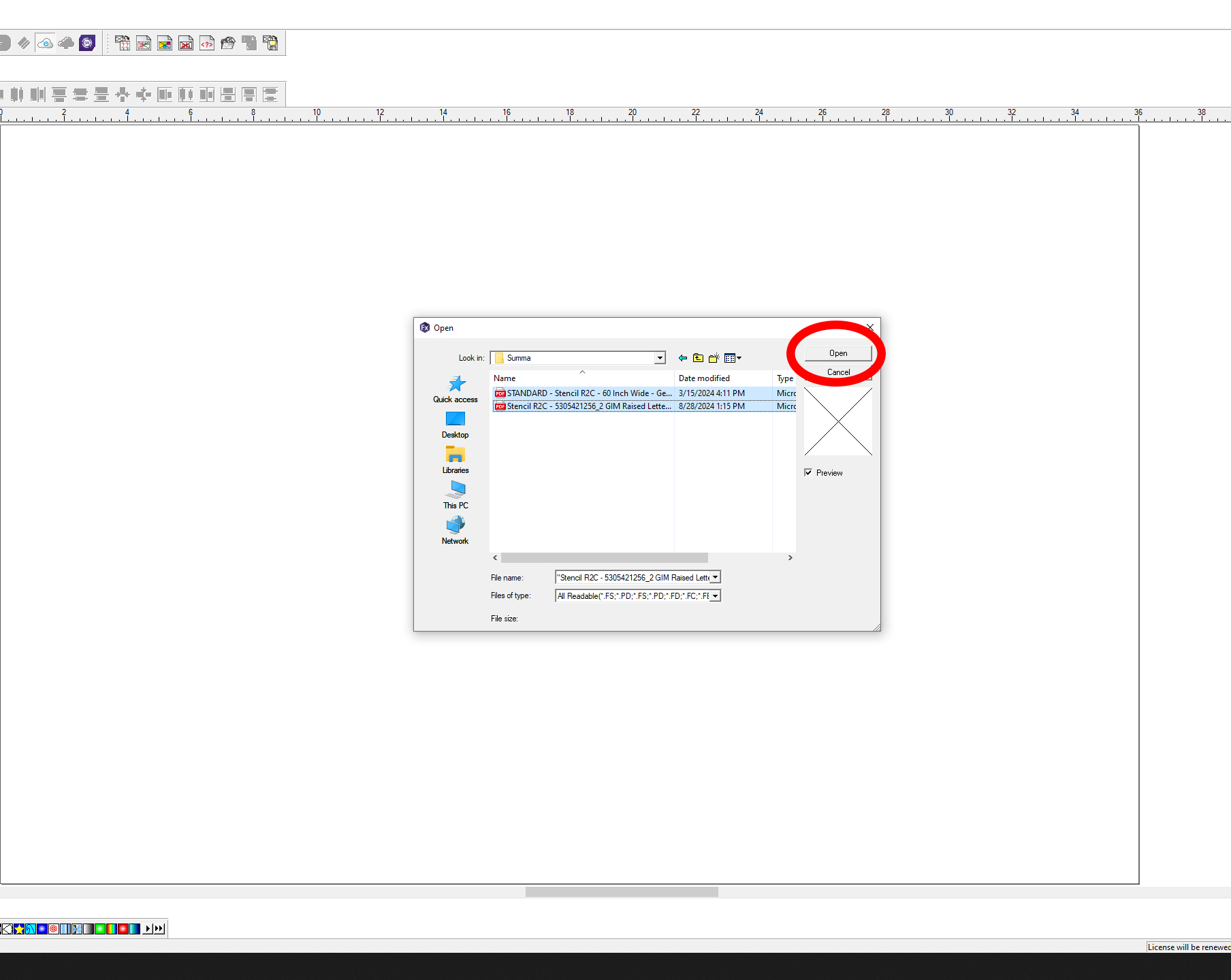

Step 3

Select Files and Press Open

Step 4

Select Cut Plot Icon

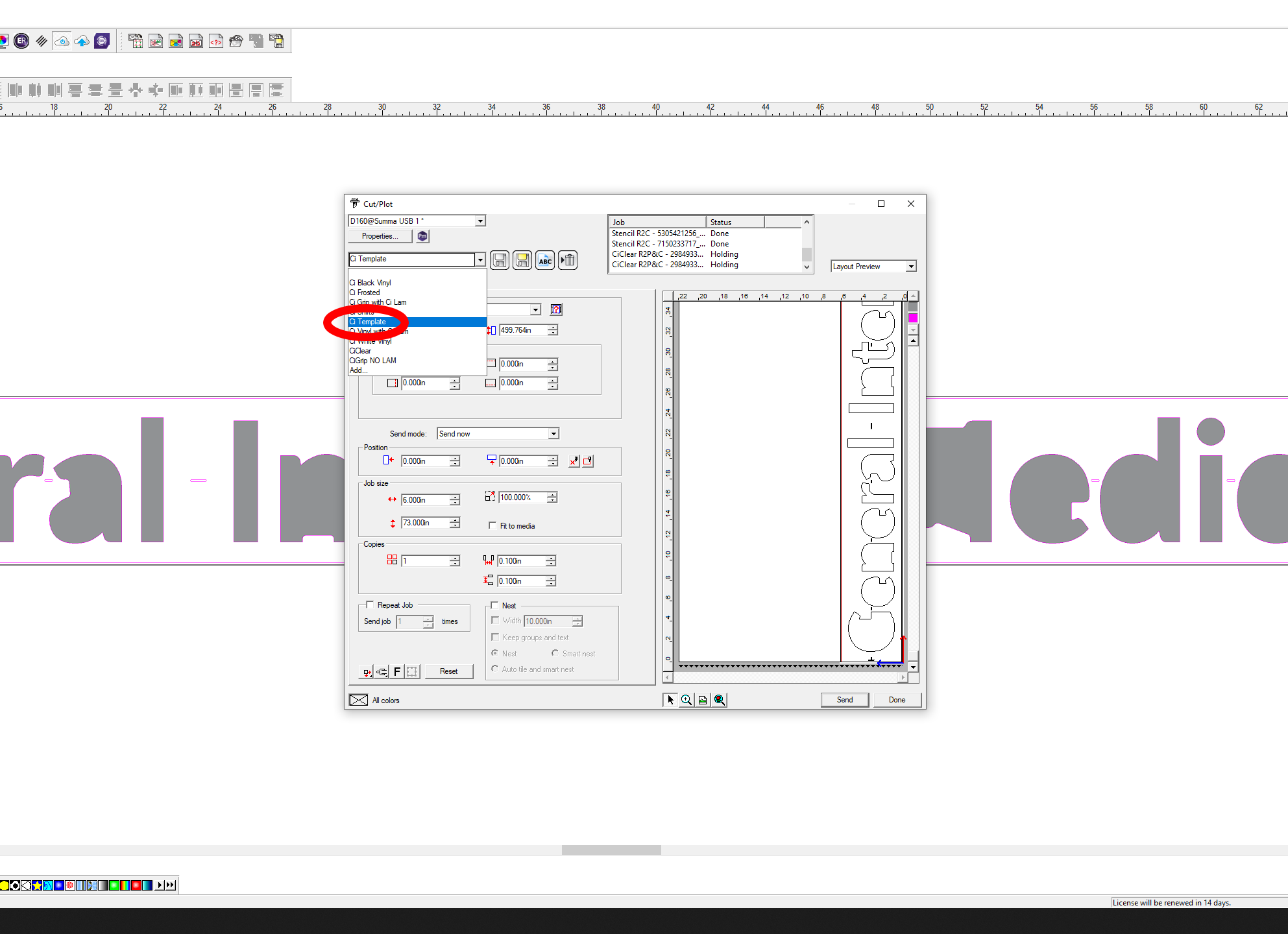

Step 5

Select Ci Template From Drop Down

Step 6

By Selecting Ci Template this is give you the length of the material needed to make the template. Remember to add 4” to this measurement. For Example the one shown is 73” so 73 + 4 = 77”

Step 7

Select the Icon shown in red

Step 8

Make sure that all items in this list that are not CutContour are deselected and then make sure you are on the CutContour option

Step 9

When devise is calibrated click on measure and start reading the patches from left to right on the target that just printed.

Step 10

Press (Next>)

Step 11

Print Multi-ink Limit Test

Step 12

Look at print with loop and look for the range that the print looks good with no over spray and is not sticky to touch then input the numbers into the Ink Limit

Step 13

Select (Next>)

Step 14

Characterization - Print Target

Step 15

Press Calibrate Put the Ione over the white target and press the button on the left over the white target

Step 16

Take target out of printer and press measure. Measure each line from left to right

Step 17

Select (Next>)

Step 18

ICC Generation Select Generate

Step 19

Press Finish
